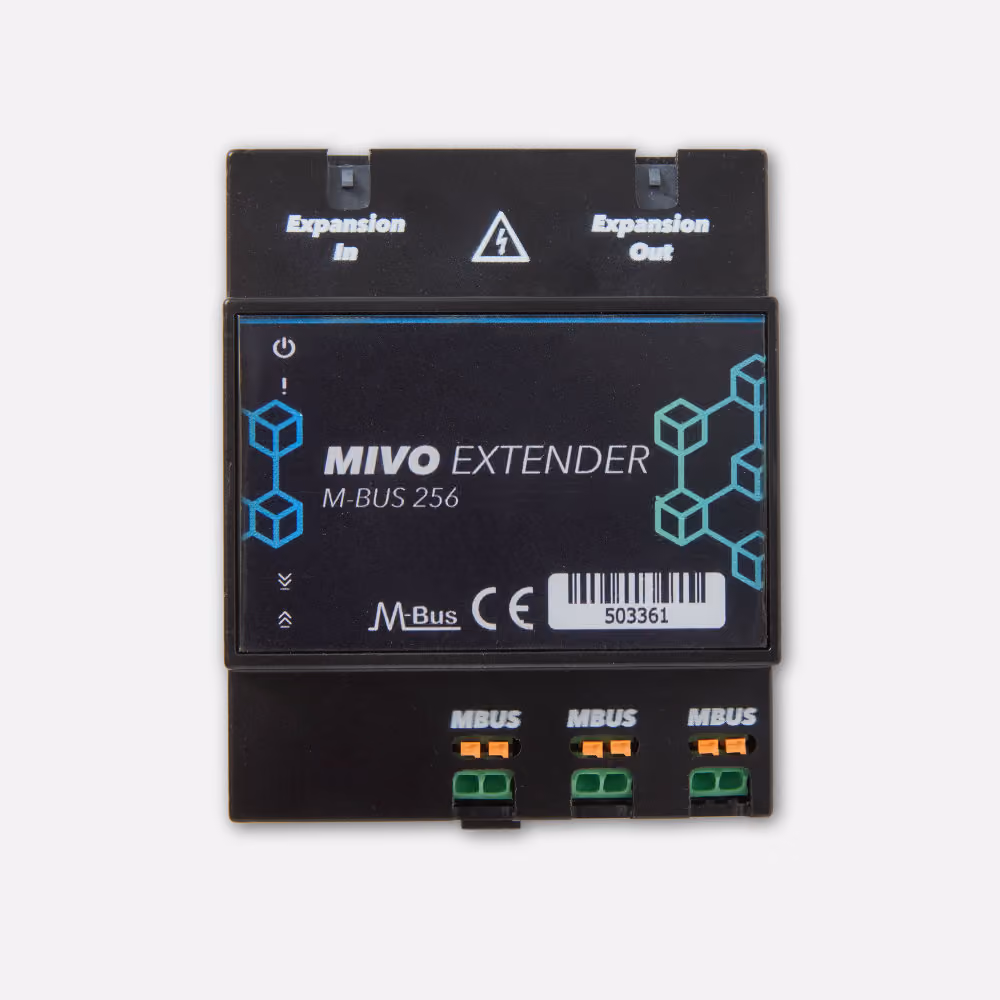

MIVO M-Bus Extender 256

MIVO M-Bus Extender 256

M-Bus
Extender
Article:
MCE-MBUS

MIVO M-Bus Extender 256

M-Bus
Extender
Article:
MCE-MBUS

The MIVO Connect M-Bus Extender 256 is easily connected to the MIVO Gateway using the supplied cable and can be reconnected with up to 10 expansion units for M-Bus and Wireless M-Bus, making it possible to collect up to 2000 meters. The module indicates faults and measures rated bus voltage and current for easier diagnostics both visually and via the MIVO Connect Data Gateway.

buysend request
buy
Product Inquiry
Icon
Icon
Your request has been received!
Oops! Something went wrong while submitting the form.
Meter Licenses
Icon
Icon

MIVO Connect has a scalable license model for reading up to 2000 meters. This enables cost-effective customization and complete freedom to expand functionality later without replacing the hardware. For collecting data from 64 meters or more, the MIVO Connect M-Bus Extender 256 is required.

License MIVO Connect Gateway Article
10 Standard MC-LICU10
32 MC-LICU32
64 MC-LICU64
128 MC01-LIC128
256 MC-LICU256
384 MC-LICU384
512 MC-LICU512
750 MC-LICU750
1000 MC-LICU1000
1500 MC-LICU1500
2000 MC-LICU2000
Modbusexport MC-LICUMODBUS
Reports via e-mail (consumption, temperature) MC-LICUEMAIL
Additional Licenses
Icon
Icon

Add licenses for extended functionality. When purchasing MIVO Connect with feature licenses, the unit is delivered pre-configured.

  • Modbus to M-Bus (always included)
  • M-Bus to Modbus
  • OpenVPN support
  • Support for Mestro energy monitoring system
  • Support for consumption and temperature reports via email
Technical Specification
Icon
Icon
Mechanics

Dimensions: 70 x 85 x 57 mm (4 DIN modules)

Mounting: 35mm DIN Rail

Weight: 200g

Protection class: IP20

Power

Power supply via expansion port

Rated operating voltage: 230 VAC (±10%), 50Hz

Power consumption (max): 5W (30 W)*

Installation category: CAT 3 (OVC III)

M-Bus Master

Standard: EN 13757

Speed: 300 / 2400 / 9600 Baud

Rated voltage: 40V

Maximum output current: 500mA

Maximum number of loads: 256

General

Maximum cable length: 5 km

Connection: Spring-loaded terminals 0.75 - 1.5 mm²

LED indicators: Status, Error, TX, RX

Error codes: Short circuit, overload, no load

Current measurement accuracy: 3% +1mA

Maximum number of expansions: 10

Environmental Requirements

Storage temperature: -25 to +55°C

Operating temperature: -25 to +55°C

Humidity: 5 to 90% non-condensing

Max operating altitude: 2000m

Pollution category: 2

Operating environment: Indoor

Approvals

EMC: EN 61000-6-2, EN 61000-6-3

Safety: EN 62368-1 (OVC III)

Environmental: RoHS, WEEE

Documentation
Icon
Icon
MIVO Connect M-Bus Extender Datasheet
MIVO Connect M-Bus Extender Manual
MIVO Connect M-Bus Extender Quick Start Manual
MIVO Connect Online Manual
Declaration of Conformity
