For collection of wireless M-Bus meters

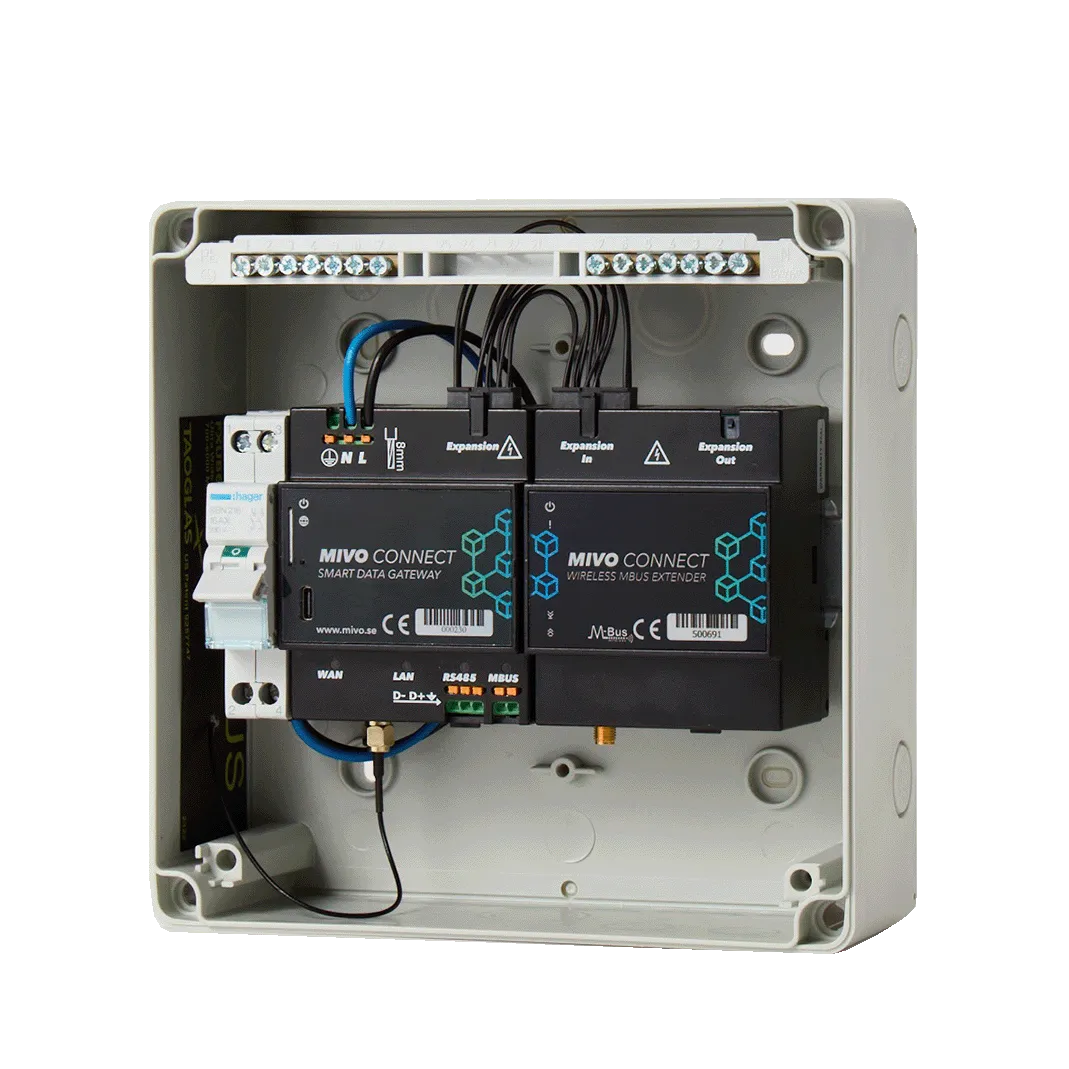

The MIVO Wireless M-Bus Extender is an add-on module to the MIVO Connect Data Gateway and extends the system with the ability to communicate via wireless M-Bus. The system is easily extended with the included expansion cable and can be diverted with up to 10 expansion units for wired or wireless collection. The receiver has built-in filters and low-noise amplifiers for longer range independent of other 4G or 5G infrastructure.

Product Inquiry
Icon
Icon
Your request has been received!
Oops! Something went wrong while submitting the form.
Meter Licenses
Icon
Icon

MIVO Connect has a scalable license model for reading up to 2000 meters. This enables cost-effective customization and complete freedom to expand functionality later without replacing the hardware. For collecting data from 64 meters or more, the MIVO Connect M-Bus Extender 256 is required.

Meter Licenses Article
10 (standard) MC-LICU10
32 MC-LICU32
64 MC-LICU64
128 MC01-LIC128
256 MC-LICU256
384 MC-LICU384
512 MC-LICU512
750 MC-LICU750
1000 MC-LICU1000
1500 MC-LICU1500
2000 MC-LICU2000
Additional Licenses
Icon
Icon

Add licenses for extended functionality. When purchasing MIVO Connect with feature licenses, the unit is delivered pre-configured.

  • Modbus to M-Bus (always included)
  • M-Bus to Modbus
  • OpenVPN support
  • Support for Mestro energy monitoring system
  • Support for consumption and temperature reports via email
Technical Specification
Icon
Icon
Mechanics

Dimensions: 70 x 85 x 57 mm (4 DIN modules)

Mounting: 35mm DIN rail

Weight: 100g

Power

Power supply via expansion port

Nominal operating voltage: 230 VAC (±10%), 50Hz

Power consumption (max): 1W

Installation category: CAT 3 (OVC III)

Wireless M-Bus

Standard: EN 13757

Sensitivity (typ): -109 dBm

Nominal voltage: 40V

Encryption modes: OMS Mode 5, 7, AES-128CTR

Connector: SMA female

General

LEDs: Status, Error, TX, RX

Max number of expansions: 10

Environmental Requirements

Storage temperature: -25 to +55°C

Operating temperature: -25 to +55°C

Humidity: 5 to 90% non-condensing

Max operating altitude: 2000m

Pollution degree: 2

Operating environment: Indoor

Certifications

EMC: EN 61000-6-2, EN 61000-6-3

Safety: EN 62368-1 (OVC III)

RED: EN 301489-1, EN 301489-7

Environmental: RoHS, WEEE
