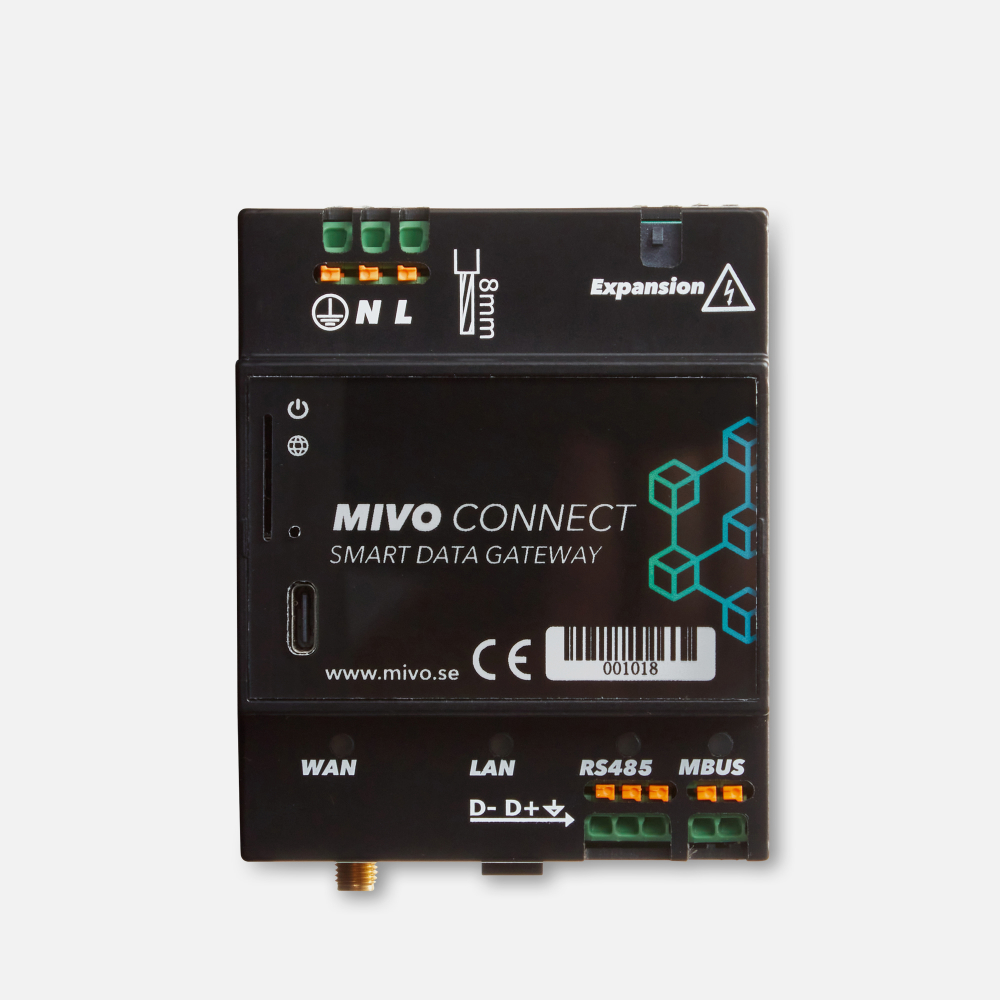

MIVO Connect M-Bus Gateway LTE (4G/5G) is a high-performance data collection unit designed for efficient management of meters and sensors via M-Bus. In its standard configuration, the device supports data collection from up to 10 meters, with the option to easily upgrade capacity to 32 meters.

In addition, the unit can handle up to 256 meters via Modbus RTU/TCP as standard.

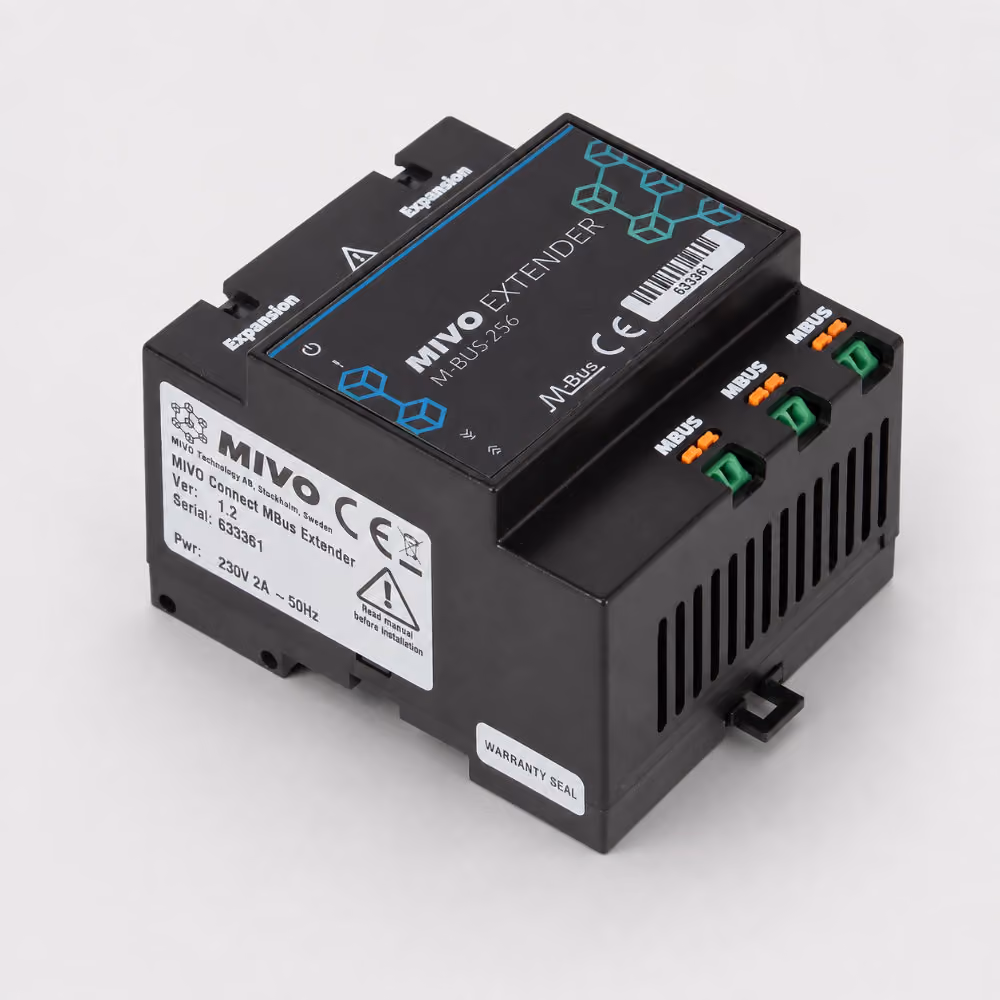

By integrating the MIVO Connect M-Bus 256 Extender, MIVO Connect Wireless M-Bus Extender or compatible third-party solutions, the system can be scaled to support up to 2,000 wired or wireless meters.

To ensure reliable operation, the device features built-in data storage that protects against data loss in the event of internet outages. An integrated router and web-based software provide a user-friendly interface for configuration, monitoring, and identification of connected meters.

MIVO Connect supports data collection through both built-in and external interfaces, including:

• M-Bus
• M-Bus IP
• Modbus RTU/TCP

The device is delivered without a SIM card for mobile connectivity, but one can be purchased separately.
