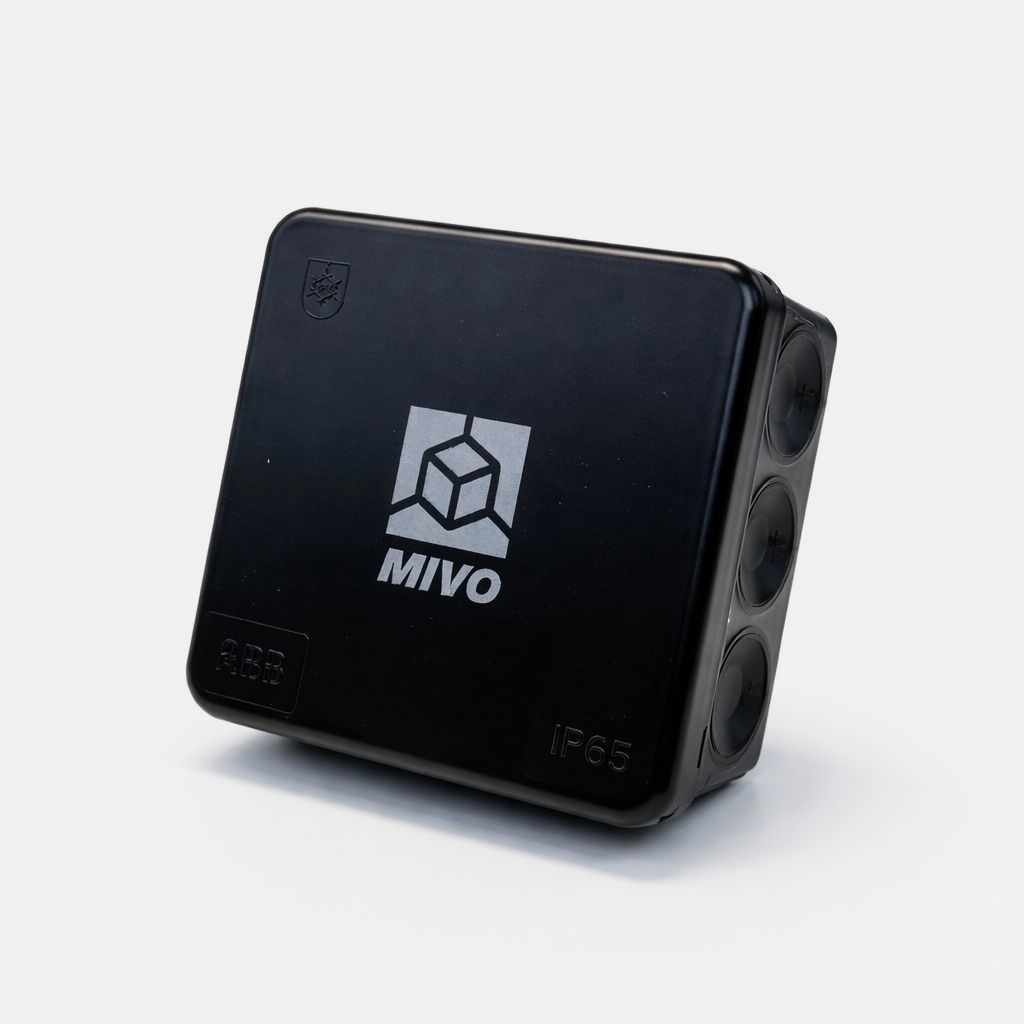

MIVO M-Bus I/O-relä är mångsidigt utformat för enkel styrning av enheter som t ex vattenventiler. Tillsammans med MIVO Connect Gateway möjliggör det fjärrdrift via ett användarvänligt inbyggt webbgränssnitt.
Dimensions (W x H x D):86 x 86 x 39 mm
Protection class: IP65
Color: Black
Voltage: 21-42 Volt
M-Bus Connector: Spring loaded terminal 0.2 - 1.5 mm2
Standard: EN 13757
Supported Baudrates: 300, 2400Baud
Type: Changeover switch (SPDT)
Relay voltage (max): 250Vac
Relay current (max): 8A
Installation category: CAT2
Operating temperature: -25 °C to +55 °C
Operating humidity: 5 % to 90 %, non-condensing
Pollution degree: Degree 2
Usage environment: Indoors
SIZE (W x H x D): 55 x 91 x 43 mm + M12 cable gland
IP 66
EMC: EN 61000-6-2, EN 61000-6-3
