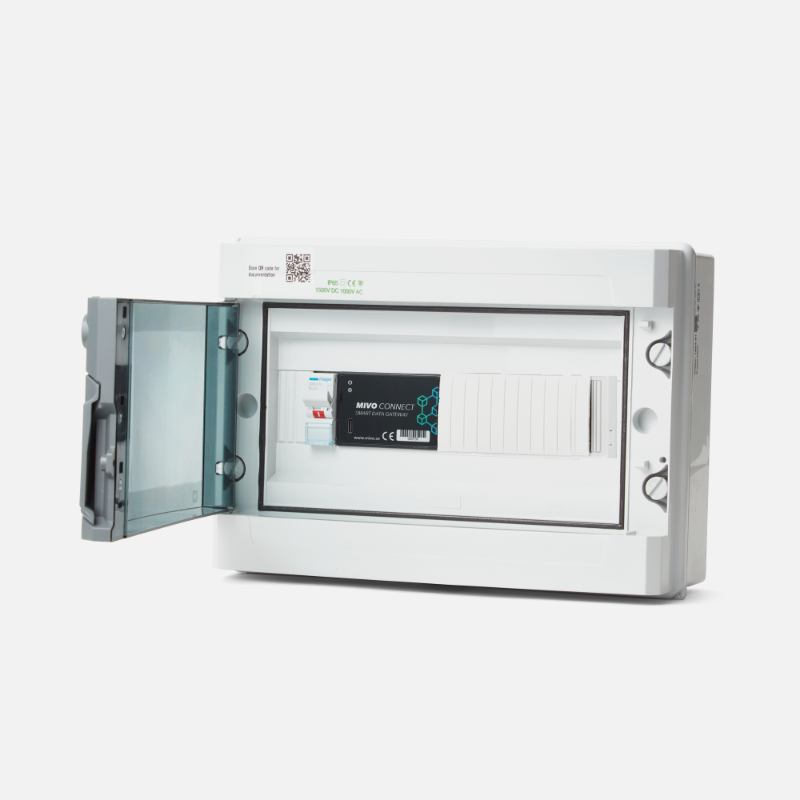

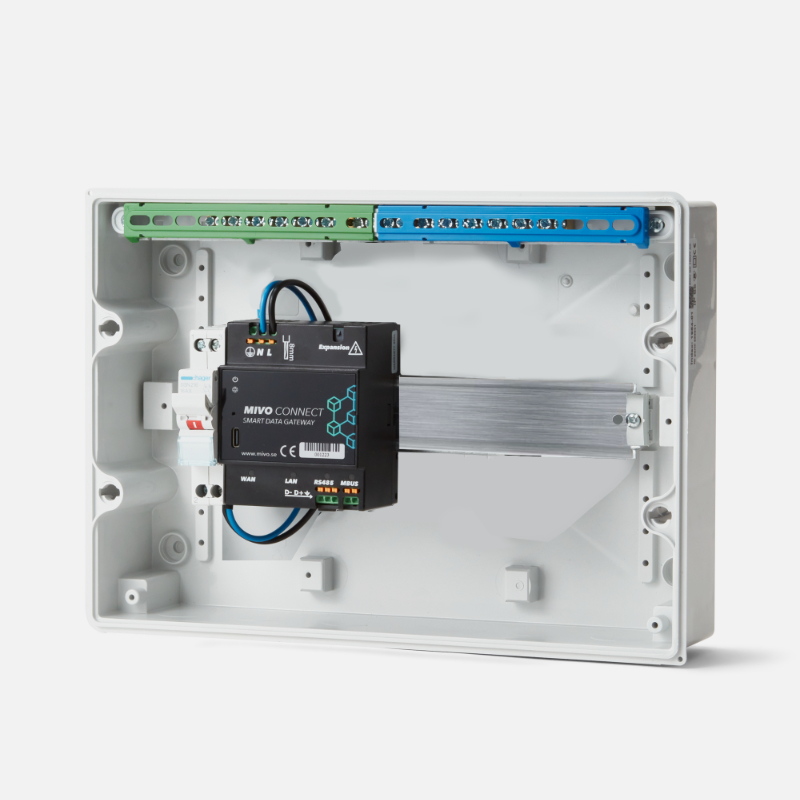

The Cabinet includes a MIVO Connect Data Gateway LTE mounted in 13 DIN cabinets along with all-pole switch. The cabinet comes with digital documentation that can be accessed through the QR code on the front. The switchboard can collect up to 32 meters depending on configuration and with add-ons for export to Modbus.
| License MIVO Connect Gateway | Article |
|---|---|
| 10 Standard | MC-LICU10 |
| 32 | MC-LICU32 |
| 64 | MC-LICU64 |
| 128 | MC01-LIC128 |
| 256 | MC-LICU256 |
| 384 | MC-LICU384 |
| 512 | MC-LICU512 |
| 750 | MC-LICU750 |
| 1000 | MC-LICU1000 |
| 1500 | MC-LICU1500 |
| 2000 | MC-LICU2000 |
| Modbusexport | MC-LICUMODBUS |
| Reports via e-mail (consumption, temperature) | MC-LICUEMAIL |
Dimension: 214 x 303 x 118 mm (13 DIN modules)
Material: Plastic (ABS)
IP-class: IP65
IK-class: IP08
Dimensions: 70 x 85 x 57 mm (4 DIN-moduler)
Mounting: 35mm DIN-Rail
Weight: 200g
Protection class: IP20
Rated operating voltage: 230VAC (± 10%), 50Hz
Power Consumption (Max): 5W (20W)
Installation category: CAT 3 (OVC III)
Connection: Spring loaded terminal block 0.75 - 1.5 mm²
Connector: RJ45
Speed: 10/100Mbit
Router Functionality: Yes
Type: LTE Cat-M
SIM: Mini-SIM (2FF)
Connector: SMA
Standard: EN 13757
Speed: 300 / 2400 / 9600 Baud
ated Voltage: 30V
Maximum output current: 85mA
Maximum number of loads: 32**
Maximum cable length: 1 km
Type: Isolated
Speed: 9600 to 115200 baud
Termination: None
Biasing: Weak (150kOhm)
Maximum number of nodes: 256
Max cable length: 30m
Connections: Spring loaded terminal 0.2 - 1.5 mm²
Storage temperature: -25 to +55°C
Operating temperature: -25 to +55°C
Humidity: 5 to 90% non-condensing
Max. operating altitude: 2000m
Dirt Category: 2
Operating environment: Indoor
Expansion module: MIVO-Link
USB connection front: USB-C
USB connection expansion: USB-A
Maximum number of meters: 2000
Collection period: 1min - 24h
Storage example**:
- Values per hour, 100 meters: >15 years
- Values per hour, 500 meters: >4 years
- Values per hour, 1000 meters: >2 years
- Values per hour, 2000 meters: >1 years
- Accuracy clock: less than 2s/day
- Battery backup clock: 24h
- Configuration interface: Web interface via USB-C or LAN
EMC: A 61000-6-2, A 61000-6-3
RED: A 301489-1, A 301489-7
Security: EN 62368-1 (OVC III)
Environment: RoHS, WEEE
