Meter Collection Enclosure IC22

Meter Licenses

MIVO Connect features a scalable licensing model that supports reading up to 2,000 meters. This provides a cost-effective solution and the complete freedom to expand functionality as your needs grow. For collecting data from 64 meters or more, the MIVO Connect M-Bus Extender 256 is required.

Licenses MIVO Connect Gateway	Articles
10 Standard	MC-LICU10
32	MC-LICU32
64	MC-LICU64
128	MC-LICU128
256	MC-LICU256
384	MC-LICU384
512	MC-LICU512
750	MC-LICU750
1000	MC-LICU1000
1500	MC-LICU1500
2000	MC-LICU2000
Modbusexport	MC-LICUMODBUS
Reports via e-mail (consumption, temperature)	MC-LICUEMAIL

Additional Licenses

For extended functionality that comes pre-configured in MIVO Connect upon purchase.

Modbus to M-Bus (always included)
M-Bus to Modbus
OpenVPN support
Support for Mestro energy monitoring system
Support for consumption and temperature reports via email

Technical Specification

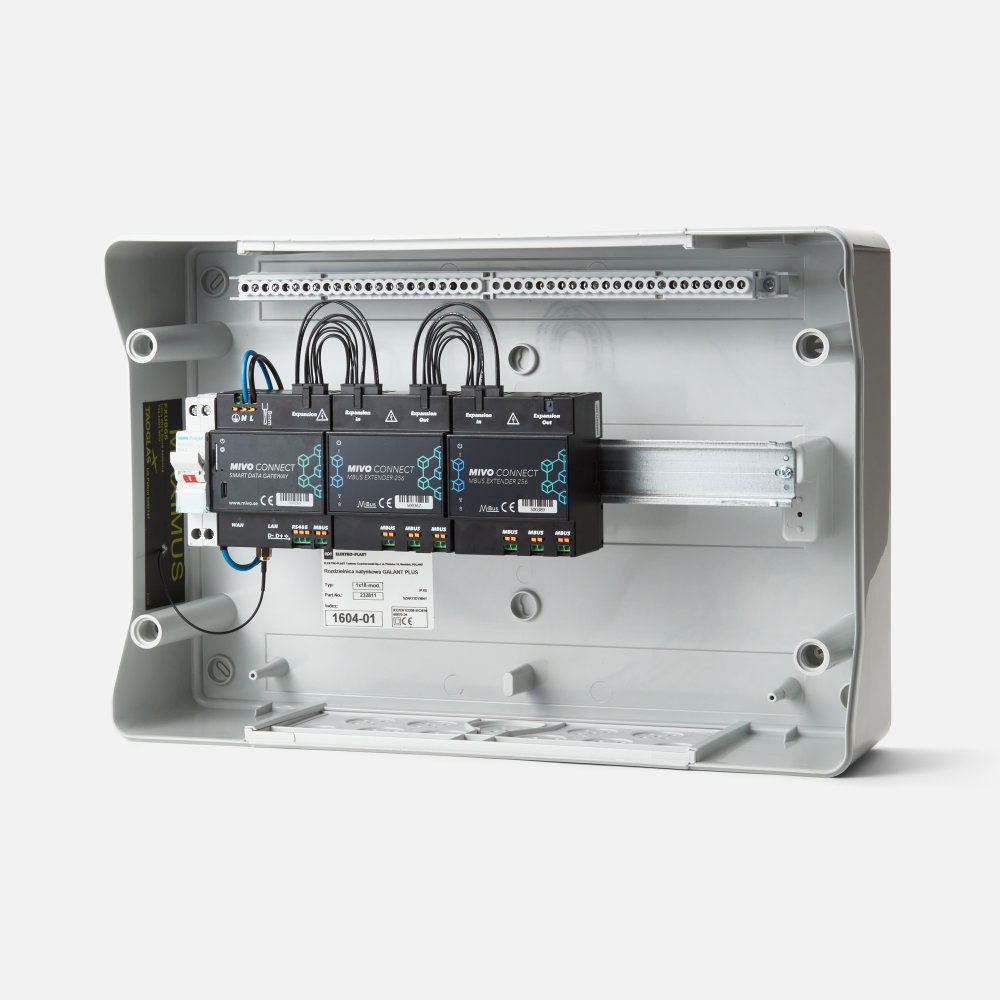

Cabinet IC22

Dimension: 214 x 303 x 118 mm (13 DIN modules)

Material: Plastic (ABS)

IP-class: IP65

IK-class: IP08

MIVO Connect

Mechanics

Dimensions: 70 x 85 x 57 mm (4 DIN-moduler)

Mounting: 35mm DIN-Rail

Weight: 200g

Protection class: IP20

Power

Rated operating voltage: 230VAC (± 10%), 50Hz

Power Consumption (Max): 5W (20W)

Installation category: CAT 3 (OVC III)

Connection: Spring loaded terminal block 0.75 - 1.5 mm²

Ethernet – 2st (WAN / LAN)

Connector: RJ45

Speed: 10/100Mbit

Router Functionality: Yes

LTE – 4G/5G Connection*

Type: LTE Cat-M

SIM: Mini-SIM (2FF)

Connector: SMA

M-Bus Master

Standard: EN 13757

Speed: 300 / 2400 / 9600 Baud

ated Voltage: 30V

Maximum output current: 85mA

Maximum number of loads: 32**

Maximum cable length: 1000 m

RS485 (Modbus RTU)

Type: Isolated

Speed: 9600 to 115200 baud

Termination: None

Biasing: Weak (150kOhm)

Maximum number of nodes: 256

Max cable length: 1000 m

Connections: Spring loaded terminal 0.2 - 1.5 mm²

Environmental requirements

Storage temperature: -25 to +55°C

Operating temperature: -25 to +55°C

Humidity: 5 to 90% non-condensing

Max. operating altitude: 2000m

Dirt Category: 2

Operating environment: Indoor

Other Connections

Expansion module: MIVO-Link

USB connection front: USB-C

USB connection expansion: USB-A

General

Maximum number of meters: 2000

Collection period: 1min - 24h

Storage example**:

- Values per hour, 100 meters: >15 years

- Values per hour, 500 meters: >4 years

- Values per hour, 1000 meters: >2 years

- Values per hour, 2000 meters: >1 years

- Accuracy clock: less than 2s/day

- Battery backup clock: 24h

- Configuration interface: Web interface via USB-C or LAN

Approvals

EMC: A 61000-6-2, A 61000-6-3

RED: A 301489-1, A 301489-7

Security: EN 62368-1 (OVC III)

Environment: RoHS, WEEE
