For 4G/5G

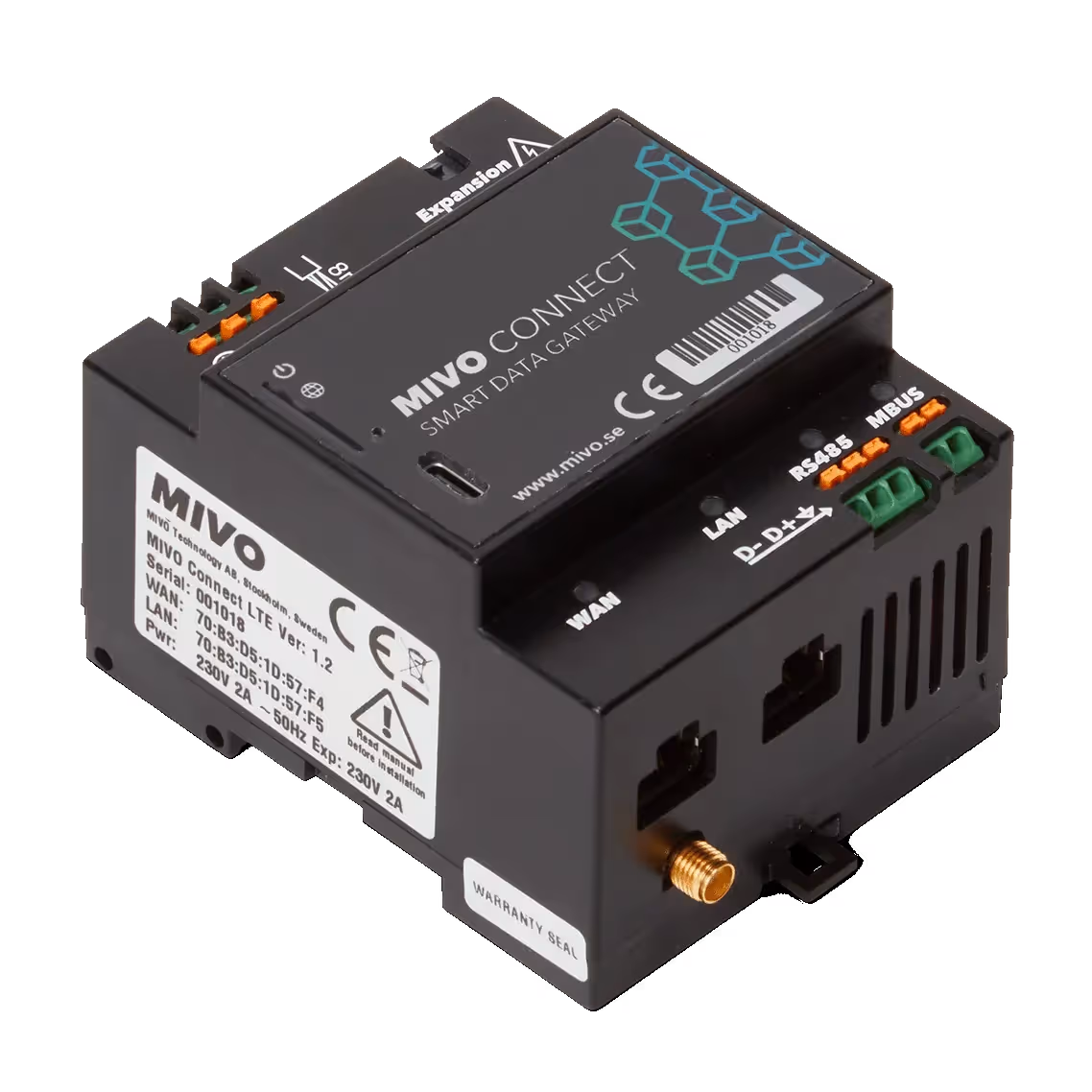

MIVO Connect Data Gateway LTE är en högkvalitativ enhet för insamling av mätare och sensorer med M-Bus. Enheten kan utökas med MIVO M-Bus Extender för insamling av upp till 2000 mätare eller för insamling av trådlösa mätare. Enheten är utvecklad så att det är enkelt att dela olika typer av mätvärden till flera olika system samtidigt. Kommunikation sker till överordnat system eller lokala styrenheter (DUC) via standardiserade kommunikationsprotokoll.
Artnr: MC02 (NOTE! The device comes without a SIM card.
The device collects information through built-in or external interfaces such as M-Bus, M-Bus IP, Modbus RTU/TCP and others. Built-in local storage protects against data loss in case of problems with the Internet connection. The device has a built-in router and is compatible with all meters that use M-Bus as communication. The device is updated locally or remotely via its built-in web interface.
10 Meter Licenses and Modbus Export
MC02-10MODBUS
32 Meter Licenses and Modbus Export
MC02-32MODBUS
10 Meter Licenses
MC02-10A
32 Meter Licenses
MC02-32A
64 Meter Licenses
MC02-64A
128 Meter Licenses
MC02-128A
256 Meter Licenses
MC02-256A
384 Meter Licenses
MC02-384A
512 Meter Licenses
MC02-512A
750 Meter Licenses
MC02-750A
1000 Meter Licenses
MC02-1000A
1500 Meter Licenses
MC02-1500A
2000 Meter Licenses
MC02-2000A
Mechanics
Dimensions: 70 x 85 x 57 mm (4 DIN modules)
Mounting: 35mm DIN-Rail
Weight: 200g
Protection class: IP20
Power
Rated operating voltage: 230VAC (± 10%), 50Hz
Power Consumption (Max): <5W (20W)
Installation category: CAT 3 (OVC III)
Connection: Spring loaded terminal block 0.75 - 1.5 mm²
Ethernet - 2pcs (WAN/LAN)
Connector: RJ45
Speed: 10/100MBit
Router Functionality: Yes
LTE - Wireless connection*
Type: LTE Cat-M
SIM: Mini-SIM (2FF)
Connector: SMA
M-Bus Master
Standert: EN 13757
Speed: 300/2400/9600 Baud
Rated Voltage: 30V
Maximum output current: 85mA
Maximum number of loads: 32**
Maximum cable length: 1 km
RS485 (Modbus RTU)
Type: Non Insulated
Speed: 9600 to 115200 baud
Termination: None
Biasing: Weak (1kOhm)
Maximum number of nodes: 10**
Max cable length: 30m
Connections: Spring loaded terminal 0.2 - 1.5 mm²
Environmental requirements
Storage temperature: -25 to +55 °C
Operating temperature: -25 to +55 °C
Humidity: 5 to 90% non-condensing
Max. operating altitude: 2000m
Dirt Category: 2
Operating environment: Indoor
Other connections
Expansion connection: MIVO-Link
USB connection front: USB-C
USB connection expansion: USB-A
General
Maximum number of meters: 2000
Collection period: 1 min - 24 h
Storage example**:
- hourly values 100 meters: >15 years
- hourly values 500 meters: >4 years
- hourly values 1000 meters: >2 years
- hourly values 2000 meters: >1 year
Accuracy clock: <2 s/day
Battery backup clock: 24 h
Configuration interface: Web interface via USB-C or LAN
Approvals
EMC: A 61000-6-2, A 61000-6-3
RED: A 301489-1, A 301489-7
Security: EN 62368-1 (OVC III)
Environment: RoHS, WEEE
* Optional
** Can be expanded via the expansion bus.
